SWT-ZW6000 3-20mm PVC* 3-16mm Thickness Plastic Sheet Bending Welding Machine For PVC, PE, PP, PVDF | MM-Tech

group name: Sheet Bending Welding Machines

Min Order: 1 set

brand name: MM-Tech Thermoplastic Welding Equipment Manufactur

model: SWT-ZW6000

Nearest port for product export: Qingdao, Shanghai, Ningbo, Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 17:16:18 GMT

contact supplier

Paramtents

Certificate CE, ISO9001
Packing Material 1 Set
MOQ Plywood Box

Packging & Delivery

500cm x210cm x175cm
Min Order1 set

Briefing

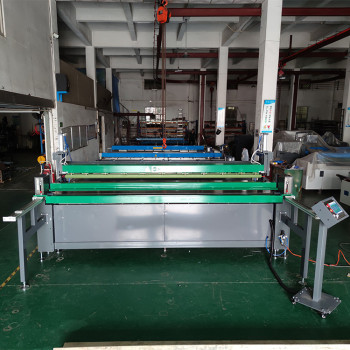

The plastic sheet bending welding machine SWT-ZW6000 is applied for manufacturing

Detailed

Detail Information

Specification/Model	SWT-ZW4500	SWT-ZW5000	SWT-ZW6000	SWT-ZW7000
Dimensions Machine Body	5500mm × 2100mm × 17500mm	6000mm X 2100mm X 1200mm	8000mm x 2100mm x 1750mm	9000mm x 2100mm x 1750mm
Bending Length	4500mm	5000mm	6000mm	7000mm
Bending Thickness	3-20mm, PVC* 3-15mm	3-20mm, PVC* 3-16mm	3-20mm, PVC* 3-17mm	3-50mm
Weldable Materials	PVC, PE, PP, PVDF	PVC, PE, PP, PVDF	PVC, PE, PP, PVDF	PVC, PE, PP, PVDF
Power Consumption (KW)	9KW	12KW	12KW	14KW
Bending Angle	0-95° Adjustable	0-96° Adjustable	0-97° Adjustable	0-98° Adjustable
Timing	Yes	Yes	Yes	Yes
Alarming	Buzzing	Buzzing	Buzzing	Buzzing
Sheet Locking Clamps	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Welding System	CNC	CNC	CNC	CNC
Power Supply	380V/415V 3P 50/60Hz	380V/415V 3P 50/61Hz	380V/415V 3P 50/62Hz	380V/415V 3P 50/63Hz
Compressed Air Connection (bar)	6-8 kg/cm²	6-9 kg/cm²	6-10 kg/cm²	6-11 kg/cm²
Display	7inch	7inch	7inch	7inch
Hardware Control Panel	PLC	PLC	PLC	PLC
Upper heating element teflon coated, Tmax= 260 °c (w x h in mm)	4700mm x 52mm x 45mm "V" Shape	5200mm x 52mm x 45mm "V" Shape	6200mm x 52mm x 45mm "V" Shape	7200mm x 52mm x 45mm "V" Shape
Lower heating element teflon coated, Tmax= 260 °C (W x H in mm)	4700mm x 45mm x 35mm Flat	5200mm x 45mm x 35mm Flat	6200mm x 45mm x 35mm Flat	7200mm x 45mm x 35mm Flat

New steel structure, the mechanical synchronous transmission technology, through the pressure regulating valve, pressure in the weld region to achieve uniform.

Suitable for all types of the thermoplastic sheets

The Control system adopts Siemens PLC, Touch screen button operation.

According to the materials data to select specific welding pressure, temperature.

Hard sheet 3mm-30mm welding ability, hollow sheet welding thickness up 80mm.

Quick press button for lock sheet Automatic LED light

Plastic sheet welding machine is suitable for welding thermoplastic sheets made of HDPE, PP, PVC, PVDF.

It could not only butt weld the sheets, but also bend the sheets, according to the project requirements. Sheets thickness 3m-30mm and width 1.5m-6.0m could be proceeded.

Applications
