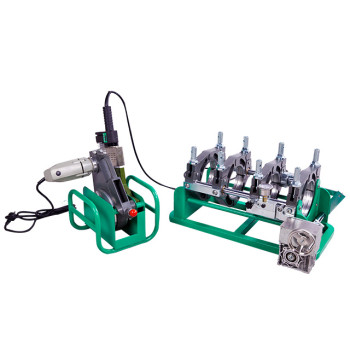

SWT-V160M PLUS 50-160mm Welding Range Manual Butt Fusion Welding Machine For PVC, PE, PP, PVDF | MM-Tech
- group name
- Manual Butt Fusion Welder
- Min Order
- 1 set
- brand name
- MM-Tech Thermoplastic Welding Equipment Manufactur
- model
- SWT-V160M PLUS
- Nearest port for product export
- Qingdao, Shanghai, Ningbo, Tianjin
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 17:16:27 GMT
Paramtents
Certificate CE, ISO9001
Packing Material 1 Set
MOQ Plywood Box
Packging & Delivery
- 38cm x42cm x57cm
-
Min Order1 set
Briefing
The manual butt fusion welding machine SWT-V160M PLUS is applied for manufacturing
Detailed
Detail Information
|
Manual Butt Fusion Machine SWT-V160/50M 50MM-160MM (2" IPS - 6" IPS) Product Details |
|||
|
WELDING RANGE O.D.
|
50MM - 160MM
|
POWER SUPPLY
|
1.8KW
|
|
POWER SUPPLY
|
220V±10%, 50/60HZ
|
TEMPERATURE RANGE
|
MAX. 300ºC
|
|
GROSS WEIGHT
|
59KGS
|
PACKING DIMENSION
|
450*480*420 MM
|
PACKING MATERIAL | PLYWOOD BOX | 380*420*570 MM | |
|
Manual Butt Fusion Machine SWT-V160/50MS PLUS 50MM-160MM (2" IPS - 6" IPS) Product Details |
|||
|
WELDING RANGE O.D.
|
50MM - 160MM
|
POWER SUPPLY
|
1.8KW
|
|
POWER SUPPLY
|
220V±10%, 50/60HZ
|
TEMPERATURE RANGE
|
MAX. 300ºC
|
|
GROSS WEIGHT
|
74KGS
|
PACKING DIMENSION
|
450*480*420 MM
|
PACKING MATERIAL | PLYWOOD BOX | 380*420*570 MM | |
Product Specification
Product Features
SWT-V160M
- Teflon coated heating plate with digital electronic temperature control (±1℃ accuracy)
- Simple design gives more convenience to close the carriage
- Fast and easy locking by rotating the handle
- Trimmer tool powered by high quality motor and equipped with safety switch
SWT-V160M PLUS
- Teflon coated heating plate with digital electronic temperature control(±1℃ accuracy)
- A refined readable pressure gauge helps operator to apply the requested force
- Worm gear reducer gives smooth movement with carriage, and auto locking
- Trimmer tool powered by high quality motor and equipped with safety switch
Welded Thermoplastic Tube Type
Welding Type
Welding Type
