SWT-V315 90-315mm Welding Range Butt Fusion Welding Machine For PVC, PE, PP, PVDF | MM-Tech
- group name
- Hydraulic Butt Fusion Welder
- Min Order
- 1 set
- brand name
- MM-Tech Thermoplastic Welding Equipment Manufactur
- model
- SWT-V315
- Nearest port for product export
- Qingdao, Shanghai, Ningbo, Tianjin
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 16:29:51 GMT
Paramtents
Certificate CE, ISO9001
Packing Material 1 Set
MOQ Plywood Box
Packging & Delivery
-
Min Order1 set
Briefing
The butt fusion welding machine SWT-V315 is applied for manufacturing
Detailed
Detail Information
|

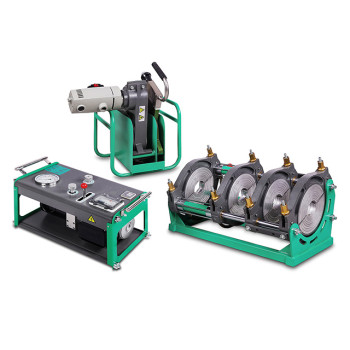

Hydraulic Butt Fusion Machine SWT-V315H 90MM-315MM (3" IPS -10" IPS) Product Details |
|||
|
WELDING RANGE O.D.
|
90MM - 315MM
|
PISTON AREA
|
20.02CM²
|
|
POWER SUPPLY
|
220V±10%, 50/60HZ
|
TEMPERATURE RANGE
|
MAX. 320ºC
|
|
HEATER POWER
|
3.0KW
|
PACKING DIMENSION
|
930*620*630 MM
|
TRIMMER POWER | 1.5KW | 630*600*730 MM | |
PUMP POWER | 0.75KW | 650*340*380 MM | |
WORKING PRESSURE RANGE | 0 - 80 BAR | GROSS WEIGHT | 241KGS |
Product Specification
Product Features
Basic Frame
- Oil seal kit, origins from Germany, make sure that the pressure
performance stays in more stable way.
- 4sets quick coupling helps operator to prepare the machine better
before and after welding, and we use STUCCHI which from Italy
ensures no hydraulic oil leakages when unplug or plug in.
- Using integral shaft(top chromate treatment) instead of
assembled shaft, ensure the chassis strength to avoid possible
frame twist or deform when dragging the pipe with extreme parameters.
Heating Plate
- We use Dupont from the USA for coating the heating plate, which is
the best in the industry. It's many stickers on an aluminum plate, more
non-sticky to plastic pipes surface. The temperature deviation of
different points on the heating plate is 2-3 degrees (small size machine)
and 5-6 degrees (big size machine).
Trimmer
- Safety Switch, which guarantees the operators' security, even with power
on, the trimmer will not be running if operators do not press the button.
Support
- Ergonomic design
Hydraulic Power Station
- Solid relays have a bigger load capacity and working in a more stable
situation, which has a much longer life.
- The circuit breaker works with an electricity leakage protection switch. I
ncluding the earth wires, there're 2 elements to activate the protection when
electricity is leaking.
- Non-fan motor (small size machines), waterproof, sand-proof, and
dust-proof at a higher level. The motor provides sufficient/full power to
provide support for hydraulic power.
Welded Thermoplastic Tube Type
Welding Type
Steps For Usage
Welding Type
