SWT-V1200 630-1200mm Welding Range Butt Fusion Welding Machine For PVC, PE, PP, PVDF | MM-Tech
- group name
- Hydraulic Butt Fusion Welder
- Min Order
- 1 set
- brand name
- MM-Tech Thermoplastic Welding Equipment Manufactur
- model
- SWT-V1200
- Nearest port for product export
- Qingdao, Shanghai, Ningbo, Tianjin
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 17:19:13 GMT
Paramtents
Certificate CE, ISO9001
Packing Material 1 Set
MOQ Plywood Box
Packging & Delivery
-
Min Order1 set
Briefing
The butt fusion welding machine SWT-V1200 is applied for manufacturing
Detailed
Detail Information
|

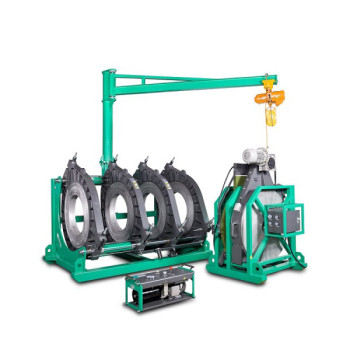

Hydraulic Butt Fusion Machine SWT-V1200H 630MM-1200MM (24''IPS - 48''IPS) Product Details |
|||
|
WELDING RANGE O.D.
|
630MM - 1200MM
|
PISTON AREA
|
50.7cm²
|
|
POWER SUPPLY
|
380V±110%, 50/60HZ
|
TEMPERATURE RANGE
|
MAX. 320ºC
|
|
HEATER POWER
|
21.5KW
|
PACKING DIMENSION
|
2550*1850*1800 MM
|
TRIMMER POWER | 4.0KW | 1800*1200*2000 MM | |
PUMP POWER | 2.2KW | 870*420*560 MM | |
WORKING PRESSURE RANGE | 0 - 160 BAR | GROSS WEIGHT | 3295KGS |
Product Specification
Product Features
Basic Frame
- Oil seal kit, origins from Germany, make sure that the pressure
performance stays in more stable way.
- 4sets quick coupling helps operator to prepare the machine better
before and after welding, and we use STUCCHI which from Italy
ensures no hydraulic oil leakages when unplug or plug in.
- Using integral shaft(top chromate treatment) instead of
assembled shaft, ensure the chassis strength to avoid possible
frame twist or deform when dragging the pipe with extreme parameters.
Heating Plate
- We use Dupont from the USA for coating the heating plate, which is the best in the industry. It's many stickers on an aluminum plate, more
non-sticky to plastic pipes surface. The temperature deviation of different
points on the heating plate is 2-3 degrees (small size machine) and 5-6 degrees (big size machine).
Trimmer
- High-quality drill, which can do 220V, 3phase as an option.
Electrical box Assy
- Temperature-controlled switch when the temperature-controlled switch is off, all the aviation plugs are not live, even the power cable connected with the power source. It is quote safe to connect or disconnect the plugs before or after welding.
- Very well-connected wires and a more reasonable layout. Each wire is
marked with the corresponding numbers, thus giving more convenience
to do the troubleshooting when a failure happens.
Hydraulic Power Station
- Solid relays have a bigger load capacity and working in a more stable
situation, which has a much longer life.
- The circuit breaker works with an electricity leakage protection switch. I
ncluding the earth wires, there're 2 elements to activate the protection when
electricity is leaking.
- Non-fan motor (small size machines), waterproof, sand-proof, and
dust-proof at a higher level. The motor provides sufficient/full power to
provide support for hydraulic power.
Support
- Ergonomic design
Welded Thermoplastic Tube Type
Welding Type
Steps For Usage
Welding Type
