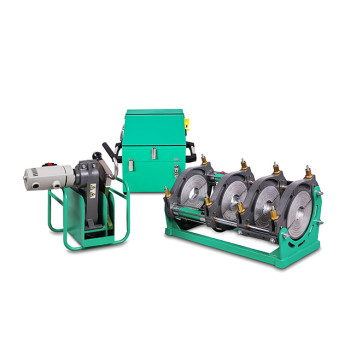

SWT-V315 CNC 90-315mm Welding Range Manual Butt Fusion Welding Machine For PVC, PE, PP, PVDF | MM-Tech
- group name
- Automatic Butt Fusion Welder
- Min Order
- 1 set
- brand name
- MM-Tech Thermoplastic Welding Equipment Manufactur
- model
- SWT-V315 CNC
- Nearest port for product export
- Qingdao, Shanghai, Ningbo, Tianjin
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 19:20:16 GMT
Paramtents
Certificate CE, ISO9001
Packing Material 1 Set
MOQ Plywood Box
Packging & Delivery
-
Min Order1 set
Briefing
The automatic butt fusion welding machine SWT-V315 CNC is applied for manufacturing
Detailed
Detail Information
|
Automatic Butt Fusion Machine SWT-V315A CNC 90MM-315MM (3" IPS -10" IPS) Product Details |
|||
|
WELDING RANGE O.D.
|
90MM - 315MM
|
PISTON AREA
|
20.02 CM²
|
|
POWER SUPPLY
|
220V±10%, 50/60HZ
|
TEMPERATURE RANGE
|
MAX. 320ºC
|
|
HEATER POWER
|
3.0KW
|
PACKING DIMENSION
|
930*620*630 MM
|
TRIMMER POWER | 1.5KW | 630*600*730 MM | |
PUMP POWER | 0.75KW | 650*340*380 MM | |
WORKING PRESSURE RANGE | 0 - 80 BAR | GROSS WEIGHT | 241KGS |
V-CNC series Characteristics | |||
WELDING CONTROL SYSTEM | FULLY MONITORED BY CNC CONTROL UNIT | ||
DATA LOGGING CAPACITY | 2000 REPORTS | ||
WELDING MONITORING SYSTEM | AMBIENT TEMPERATURE, INPUT VOLTAGE, HEATING TEMPERATURE, WELDING PRESSURE, WELDING TIMES, HEATING OPERATION, TRIMMING OPERATION, MEMORY CONTROL. | ||
WELDING STANDARD | DVS, ISO, WIS, UNI AND OTHERS UPON REQUEST | ||
LANGUAGES | AVAILABLE UPON REQUEST | ||
WARRANTY PERIOD | 2 YEARS | ||
Product Specification
Product Features
Basic Frame
- Oil seal kit, origins from Germany, make sure that the
pressure performance stays in a more stable way.
- 4sets quick coupling helps the operator to prepare the
machine better before and after welding, and we use
STUCCHI which from Italy ensures no hydraulic oil leakages
when unplug or plug in.
- Using an integral shaft (top chromate treatment) instead
of the assembled shaft, ensure the chassis strength to
avoid possible frame twist or deform when dragging the
pipe with extreme parameters.
Heating Plate
- We use Dupont from the USA for coating the heating plate, which is
the best in the industry. It's many stickers on an aluminum plate, more
non-sticky to plastic pipes surface. The temperature deviation of
different points on the heating plate is 2-3 degrees (small size machine)
and 5-6 degrees (big size machine).
Heating Plate
- We use Dupont from the USA for coating the heating
plate, which is the best in the industry. It's many stickers
on an aluminum plate, more non-sticky to plastic pipes
surface. The temperature deviation of different points on
the heating plate is 2-3 degrees (small size machine) and
5-6 degrees (big size machine).
Trimmer
- Safety Switch, which guarantees the operators' security, even with power
on, the trimmer will not be running if operators do not press the button.
Support
- Ergonomic design
Welded Thermoplastic Tube Type
Welding Type
Steps For Usage
Welding Type
