SWT-NS600C1-20mm Thickness Hand Extrusion Welder For HDPE, PP, PVDF, And Other Thermoplastic Materials | MM-Tech

group name: Extrusion Welder

Min Order: 1 set

brand name: MM-Tech Thermoplastic Welding Equipment Manufactur

model: SWT-NS600C

Nearest port for product export: Qingdao, Shanghai, Ningbo, Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 17:26:35 GMT

contact supplier

Paramtents

Certificate CE, ISO9001
Packing Material 1 Set
MOQ Plywood Box

Packging & Delivery

Min Order1 set

Briefing

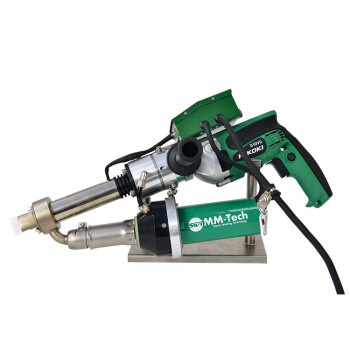

Extrusion Welder SWT-NS600C is applicable to welding PE, PP, PVDF, and other melt

Detailed

Detail Information

Model	SWT-NS600C
Input voltage	230V
Frequency	50 / 60Hz
Extruding power	800W
Hot air power	1600W
Welding rod heater power	800W
Air temperature	20 - 620 ℃
Extruding Temperature	50 - 380 ℃
Extruding volume	2 - 2.5 Kg/h
Welding rod diameter	φ3 a 4 mm, (5 mm can be customized)
Weight	6.9 Kg
Driving motor	HIKOKI
Materials thickness	1-20 mm

Series Oe Ddoducts

Product Specification

Hand-held extrusion welders are usually used to weld HDPE, PP, PVDF, and other thermoplastic materials in projects like plastic water tank manufactured, plastic pipes and plastic sheets connection, etc.

Ergonomic design with comfortable grip handle, a multifunctional display screen with temperature and air volume adjustable, and simple operation are the main feature of MM-Tech extrusion welder.

Application
