ZRJQ-63 20-63mm Socket Fusion Welding Machine For HDPE, PP, PVDF, And Other Thermoplastic Materials | MM-Tech
- group name
- Pipe Socket Fusion Machines
- Min Order
- 1 set
- brand name
- MM-Tech Thermoplastic Welding Equipment Manufactur
- model
- ZRJQ-63
- Nearest port for product export
- Qingdao, Shanghai, Ningbo, Tianjin
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, PayPal, Westem Union, Cash, Escrow
- update time
- Wed, 04 Dec 2024 01:29:58 GMT
Paramtents
Certificate CE, ISO9001
Packing Material 1 Set
MOQ Plywood Box
Packging & Delivery
-
Min Order1 set
Briefing
Socket Welder with digital display ZRJQ-63 is used for PP-R, PE pipes, and fittings.
Detailed
Detail Information
Fusing Pipe Scope | 20MM~63MM |
|
Rateed voltage
|
A.C220/230V,50/60Hz
|
|
Power
|
600/650W
|
Working Temperature | 260℃±3% |
Working Temperature | -5℃~45℃ |
|
Appllicable Material
|
PP - R/PE
|
Net Weight Of Mchine | 1.6Kgs |
PCS/carton | 4PCS |
Carton Size | 435×360×255（mm) |
Weight/carton | 17.5Kg |
Lnciuding the following accessorirs：

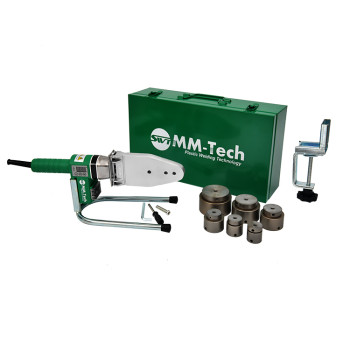

1PCS fusion tool、1PCS metal case、1PCS underpin stand、1purchase table-board clamp(optional)、1bag of bolts ang hex key wrench、Socktes D20、D25、D32、D40（optional)
Standard Composition
Product Features
Atrong aluminum heater plate,
Thickness to 19mm,
Teflon surface is optional,
Inside heating element 110V and 220V optional.
ABS+Strong Nylon handle,
LED working light and digital screen,
Aluminum moulded insulation cover,
Magnesium material cooling fin.
VDE copper wire and rubber cover cable,
Cable long to 3m,
Support worldwide plugs,
Plug cover protective.
Strong and stable U type machine support,
Special use table clamps,
Stainless steel wrench and screw.
Aluminum material with Daikin teflon, Size support DVS and ASTM standard, Heating sockets, repair sockets and saddle sockets are
provided.
provided.
Steel box, thickness 1.0mm,
Support OEM color paint,
Support OEM LOGO engrave and sticker.
Socket Fusion Instruction
1. Fusion Preparation
Choose the suitable machine and sockets Prepare the cutter, fusion material.
2. Cutting the pipe
Cutting the necessary pipe length with the plastic pipe cutter.
3. Clearing the pipe
Clearing the fusion surface of pipe with alcohol.
4. Measure fusion depth
Measure the fusion depth according the fusion standard table and mark.
5. Heating
Put the pipe and fitting into the socketshorizontal, Heating time refer standard.
6. Connecting and cooling
Connect the heated pipe and fitting exactly and adjustment finish in 5s.
Product Features
MM-Tech offers a wide range of socket fusion machines for most applications up to 160mm.
It could be used to socket weld thermoplastic pipes made of HDPE, PVDF, PP, and PPR.
